How To – Making Tile Bases CHEAP

greek tile

Everyone and their mum’s favourite basing material at the minute seems to be cork board to make stone bases, here is a slightly different way to use cork board and plasticard to make some fancy alternatives to resin bases with just a few simple extra steps.

Step one

Draw a checkerboard pattern on some plasticard to any size but I found the best size is about 1-2cm as then you can see a few tiles on the base. Here i’ve used 1.5mm thick plasticard, of course you can use any thickness but if it is too thin you won’t be able to score the lines to make the tiles 3D in a later step.

Photo-14-03-2015-16-35-45



Step two

Stick some cork board to the desired size of base, here I’m using 25mm, and cut roughly to make them about the same size as the base, or leave some over hang if you want it’s completely down to your preference.

corn on base



Step three

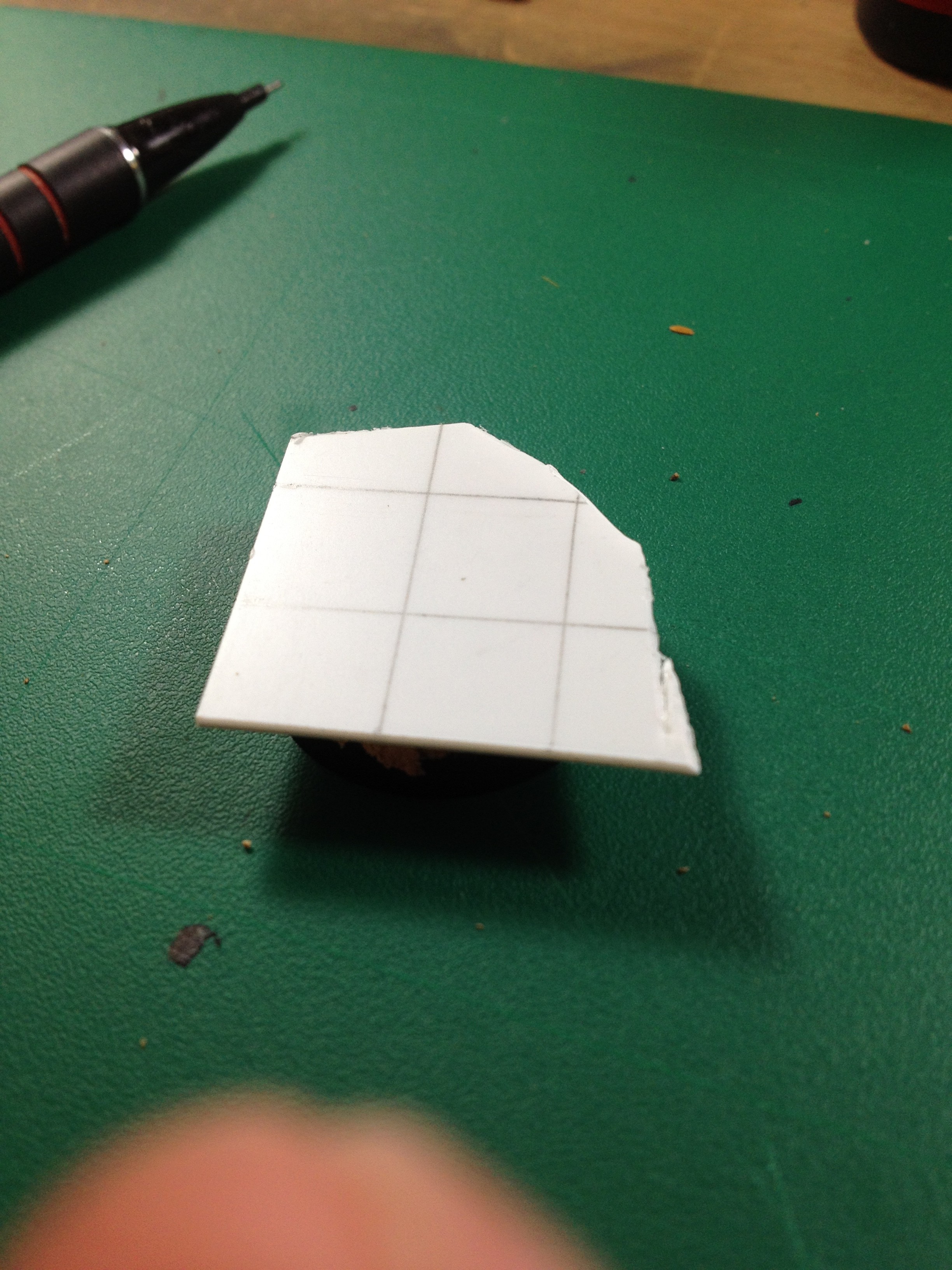

Cut some of the plasticard to roughly the same size as the base and then stick this on top of the cork on the base.

Photo 14-03-2015 16 39 54

Now cut this roughly around the edge to make it look like broken tiles/flooring, again the overhang on this is up to you.

Photo 14-03-2015 16 41 56



Step four

When all the glue is dry use the tip of your hobby knife or scalpel to score along the lines and make the tiles 3D, this makes it a lot easier to paint later on. Be sure to use a metal rule and be extremely careful with the knife as I’ve learned the hard way in the past!

Photo 14-03-2015 16 42 44

And Tah-Dah! this is what you get after these few steps!

Photo 14-03-2015 16 43 55



Alternatively….

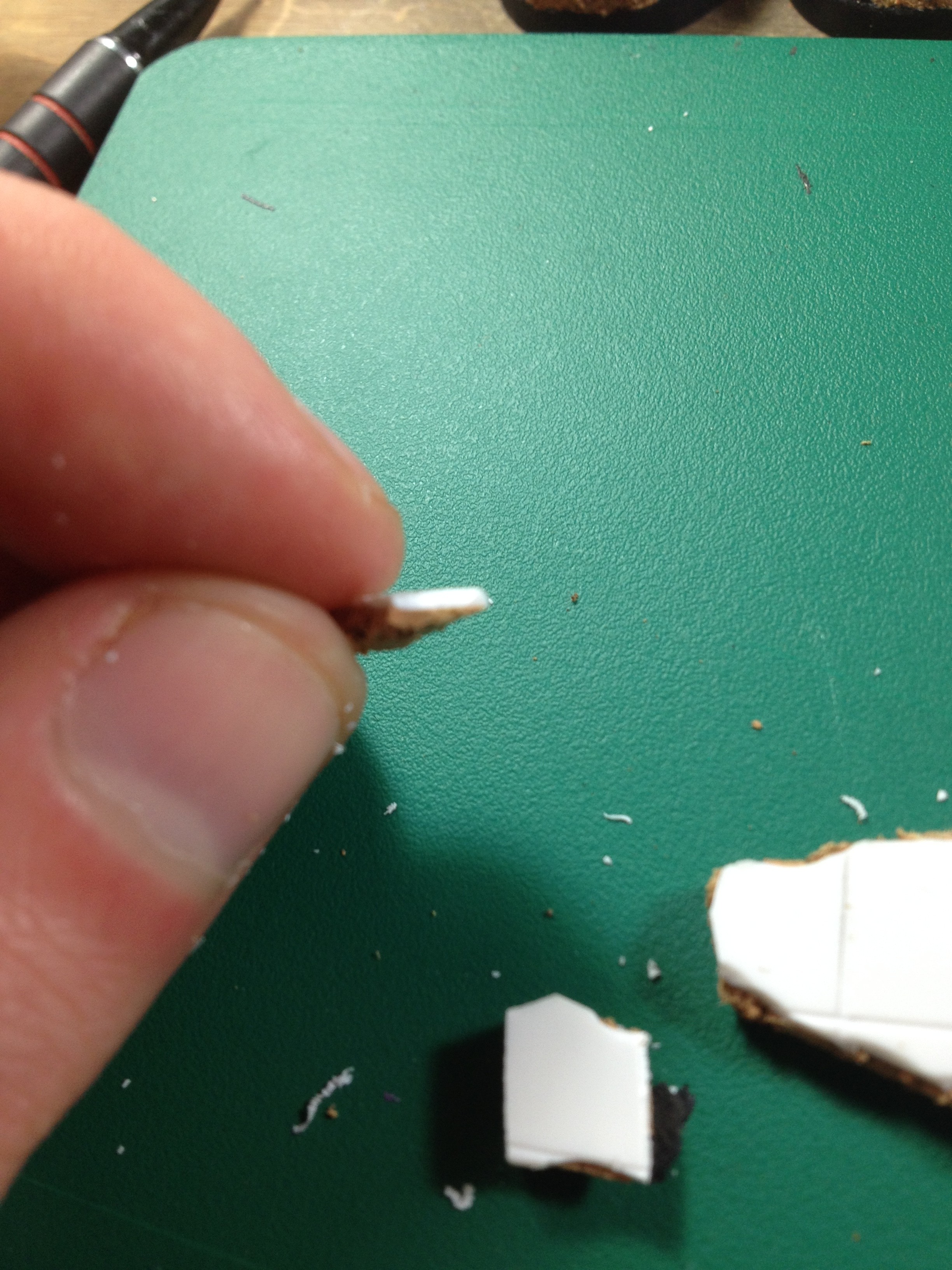

If you really want to make something special for characters or more scenic bases you can attach the cork to the plasticard first instead of the base, cut out smaller sections and trim the cork at an angle to look like jagged pieces of tiled floor then glue them to the base. Ensure that you leave enough flat space for the model to stand on!

Photo 14-03-2015 16 45 56 Photo 14-03-2015 16 50 03 Photo 14-03-2015 16 52 32Photo 14-03-2015 16 52 16 Photo 14-03-2015 16 52 06 Photo 14-03-2015 16 53 38

On these i’ve added some sand between the smaller floor sections to look like rubble from the destruction of the building floor, this can be substituted for your basing material of choice to fit with the rest of your army as well.

Photo 14-03-2015 16 57 24 Photo 14-03-2015 16 57 39

Cheap and easy plus it looks great on the table top!
